Behind every app on your phone is a quiet conversation happening over the internet — and the language of that conversation is the API. This post covers three essential API topics every system designer must know. You will start with What Is an API? — the contract that lets two programs talk, the request & response cycle, and the JSON format that carries data between them. Next you will learn REST & HTTP — the most common API style on the web, built on HTTP methods like GET and POST, resource URLs, and status codes that tell the client what happened. Finally you will explore API Authentication — how a server knows who is calling and whether they are allowed, covering API keys, tokens, JWT, and OAuth. Each topic is explained with real-world analogies, step-by-step examples, and clear diagrams — starting from zero.

Almost nothing you do online is handled by a single program. Your weather app does not measure the temperature itself — it asks a weather company. Your travel app does not own any airplanes — it asks dozens of airlines for their prices. The mechanism that lets one program ask another for data or an action, in a structured and predictable way, is the API. In this section we will build that idea from scratch — what an API is, why every modern system depends on them, and exactly what happens during a single API call.

Imagine you open a weather app and it shows 22°C and sunny. Your phone did not measure that temperature. Instead, the app sent a message over the internet to a weather company's server — something like "give me the current weather for Tokyo" — and the server replied with the data. That structured request-and-reply, following rules both sides agreed on in advance, is an API call.

API stands for Application Programming Interface. The key word is interface — a clearly defined boundary through which two programs talk. The app (the caller) never sees how the weather server works inside; it only needs to know how to ask and what shape the answer will take. An API is the contract that defines exactly those two things: what you can ask for, and what you will get back.

This happens everywhere. When you "Log in with Google," your app calls Google's API. When you pay with PayPal on a shopping site, the site calls PayPal's API. When Uber shows your car on a map, it calls Google Maps' API. APIs are the invisible glue connecting the entire internet.

APIs are the backbone of how modern software is built. No company builds everything itself — they connect specialised services together through APIs. The scale is enormous: Google Maps handles billions of API calls per day, Stripe processes payments for millions of businesses entirely through its API, and Twitter/X served over 100 billion API calls per day at its peak. Studies suggest that more than 80% of all internet traffic is API calls between machines, not humans browsing web pages.

• APIs let teams build independently — the mobile team and the backend team agree on an API contract, then work in parallel without blocking each other.
• APIs let companies reuse instead of rebuild — why build a payment system when you can call Stripe's API in an afternoon?
• APIs are how microservices talk — in a large system, hundreds of internal services communicate with each other entirely through APIs.
• APIs create business ecosystems — by exposing an API, a company lets thousands of other developers build on top of it (the way Twilio powers SMS for countless apps).

Why system design cares: In almost every system design problem, one of the first steps is "define the API." Before you discuss databases or scaling, you decide what requests the system accepts and what it returns. The API is the contract everything else is built around.

Think of a restaurant menu. The menu lists exactly what you can order and what you will receive. You don't walk into the kitchen, and you don't need to know how the chef cooks — you just point at an item, and the waiter brings it back. The menu is the interface between you (the customer) and the kitchen (the complex system you never see).

An API is exactly that menu for software. It lists the available "dishes" (the things you can request), specifies how to order them, and guarantees the shape of what comes back — all without exposing the kitchen.

The crucial insight: you only need the menu, not the recipe. As long as the menu (the API) stays the same, the kitchen can completely change how it cooks — new chefs, new equipment, new suppliers — and you never notice. This is why APIs let backend teams rebuild and scale their systems without breaking the apps that depend on them.

Remember: An API is not a specific technology — it is an idea. REST, GraphQL, gRPC, and even a library function call are all APIs. They all share the same essence: a defined way for one piece of software to use another without knowing its internals.

Let us trace exactly what happens when your weather app fetches today's forecast for Tokyo. This single round-trip is the heart of every API call.

Here is what the request and the JSON response actually look like on the wire:

Key insight: The app and the weather server may be written in completely different languages, run on different hardware, and be owned by different companies. They cooperate perfectly because they both agree on the contract: how to ask (the endpoint and parameters) and what comes back (the JSON shape). That agreement is the entire value of an API.

"API" is a broad idea, so it shows up in several flavours. We can group them two ways: by the architecture style they use, and by who is allowed to call them.

For this post: When people say "API" on the web, they almost always mean a REST API returning JSON over HTTP. That is what Section 2 dives into. The other styles exist for specific needs — GraphQL for flexible queries, gRPC for fast internal calls, WebSocket for real-time streams.

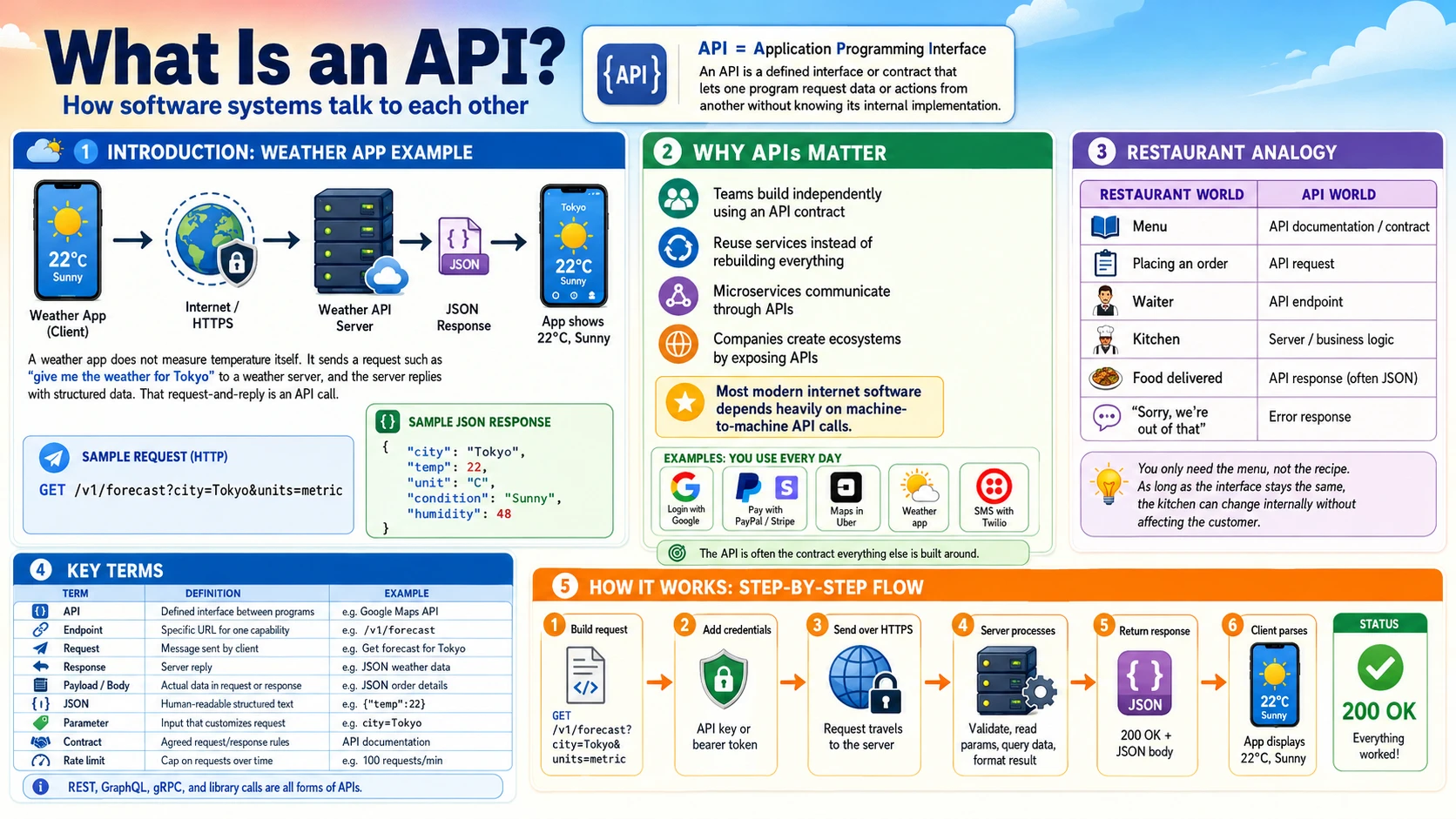

The diagram below shows a single API call end to end: the client app sends a request to a specific API endpoint, the server runs its logic and reads the database, and a JSON response travels back. The client never touches the database directly — the API is the only door in.

Reading the diagram: The client sends a request with its API key ① to the endpoint, which validates and forwards it ② to the server. The server queries ③ the database and gets rows back ④, then returns a clean JSON response ⑤ to the client. The endpoint is the public "menu"; everything to its right is the hidden kitchen.

You expose or call an API whenever two pieces of software need to cooperate without being merged into one. That covers almost every real system, but it helps to know when an API is the right tool — and when it is overkill.

Rule of thumb: If a boundary exists between two systems — different apps, different teams, different companies, or different services — put a well-defined API across it. The API becomes the stable promise that lets both sides change independently.

Travel sites like Expedia or Skyscanner own no airplanes and run no payment networks. They are, in large part, an orchestra of API calls. Here is what happens when you search for a flight and book it:

Notice: A single flight booking triggered API calls to airlines, a payment provider, and a messaging service — none of which the travel site built itself. This is the real power of APIs: complex products are assembled by combining specialised services through their interfaces.

New terms above? The HTTP methods (GET, POST) and status codes (201 Created) are explained fully in Section 2. The API keys and tokens that keep these calls secure are covered in Section 3. For now, just notice how many independent APIs cooperate to serve one user action.

• An API is a contract — it defines what one program can ask another for, and what it gets back.
• It hides the kitchen — callers use the interface without knowing the internals, so backends can change freely.
• JSON is the common language — most web APIs exchange data as lightweight, human-readable JSON.
• APIs come in styles and access levels — REST, GraphQL, gRPC, SOAP, WebSocket; and public, private, or partner.
• Modern systems are assembled from APIs — products combine specialised services (payments, maps, messaging) instead of building everything in-house.

🎬 Challenge: Design the API for a movie ticket booking app

You are designing the API behind an app like BookMyShow or Fandango. Think through the following:

• What endpoints would you expose? (Hint: think about browsing movies, picking a show, and booking seats.)
• For each endpoint, what would the request carry, and what JSON would the response return?
• Which third-party APIs would you call instead of building yourself?
• What should happen if two users try to book the same seat at the same time?

👁️ Show Answer

Endpoints you might expose:

• 🎬 GET /movies — list movies now showing
• 📍 GET /movies/{id}/shows?city=Tokyo — showtimes for a movie
• 💺 GET /shows/{id}/seats — which seats are free
• 🎟️ POST /bookings — reserve seats and pay

Example contract for booking: the request body carries the show ID and chosen seats; the response returns a booking reference and status.

// POST /bookings → request body { "show_id": "SHW-991", "seats": ["A4", "A5"], "user_id": "U-128" } // 201 Created → response body { "booking_id": "BKG-77231", "status": "confirmed", "total": 3000, "currency": "JPY" }

Third-party APIs to call:

• 💳 A payment API (Stripe/PayPal) to charge the card
• 📧 An email/SMS API (SendGrid/Twilio) to deliver the ticket
• 🗺️ A maps API to show the cinema location

Two users, one seat:
The seat must be locked the moment one user starts checkout, so the second user's request returns a 409 Conflict ("seat no longer available"). This is a concurrency problem solved with short-lived locks or a database transaction — patterns we will revisit in later phases of the series.

In the cloud, you rarely expose your servers directly. Instead, you put a managed API layer in front of them that handles routing, validation, and throttling. These are the core services for hosting and managing an API on each platform:

Simplest AWS picture: A client calls API Gateway (the public endpoint) → Gateway validates the request and forwards it to a Lambda function (your logic) → Lambda returns JSON → Gateway sends it back to the client. That is a complete, scalable API with no servers to manage.

---

Now that you know what an API is, the next question is: what rules do most web APIs actually follow? The answer is REST, an architectural style that runs on top of the HTTP protocol. Together they give the web a simple, uniform vocabulary: address a resource with a URL, act on it with an HTTP method like GET or POST, and read the status code to learn what happened. In this section you will learn the anatomy of an HTTP request, the methods and status codes that power every REST API, what makes an API truly RESTful, and how REST compares to alternatives like GraphQL, gRPC, and WebSocket — so you can choose the right one in a system design.

Imagine you are building an online bookstore. You need to list all books, show one book's details, add a new book, update a price, and remove a book that's out of print. That is five different actions on one kind of thing — a "book." REST gives you a clean, predictable way to express all five using nothing but a URL and an HTTP method.

REST stands for Representational State Transfer. It is not a protocol or a library — it is a style, a set of conventions for designing APIs. HTTP (HyperText Transfer Protocol) is the actual protocol the browser already uses to load every web page, and REST simply reuses it. In a REST API, each "thing" is a resource with its own URL (/books/42), and the HTTP method you use (GET, POST, PUT, DELETE) says what you want to do to it.

🔗 REST vs HTTP: HTTP is the transport — the rules for sending a request and getting a response. REST is a discipline for how to use HTTP well: nouns in the URL, verbs as HTTP methods, meaningful status codes, and no server-side session state. You can use HTTP without being RESTful, but you cannot be RESTful without HTTP.

REST is the lingua franca of the web. The vast majority of public web APIs are REST — including GitHub, Stripe, Twitter/X, and Shopify. Surveys of public APIs consistently put REST well above 70% of all of them. When a system design problem says "design the API," the default expectation is a REST API returning JSON over HTTP.

• REST is uniform — once you learn GET/POST/PUT/DELETE, every REST API feels familiar; you don't relearn the basics per service.
• REST is stateless — each request carries everything the server needs, so any server can handle any request. That is what lets you put dozens of identical servers behind a load balancer and scale horizontally.
• REST is cacheable — GET responses can be cached by browsers, CDNs, and proxies, cutting load dramatically.
• REST uses plain HTTP — it works with every language, every browser, every tool (curl, Postman) with zero special setup.

Why system design cares: Statelessness is the single most important property here. Because a REST server keeps no memory of past requests, you can run many copies of it and route any request to any copy. This is the foundation of horizontal scaling — a theme that returns in almost every later topic in this series.

Think of a library front desk. Every book is a resource with a shelf address. You don't wander the stacks yourself — you make a request at the desk, and you phrase it as an action on a specific book: "show me book #42," "add this new book," "update this book's record," "remove this book." The librarian performs the action and hands you a slip telling you how it went — "done," "not found," or "you're not allowed."

Notice the pattern: the book (noun) goes in the URL, and the action (verb) is the HTTP method. A well-designed REST API never puts verbs in the URL — you never see /getBook or /deleteBook42, because the method already says the verb.

A REST call is just a well-structured HTTP request and response. Let us break down the four parts that make it work: the request anatomy, the methods, the status codes, and the rules that keep it stateless.

Every HTTP request has four parts: a method + path (the action and the resource), headers (metadata like content type and auth), and an optional body (data, used by POST/PUT). The response mirrors it: a status code, headers, and a body. Here is a request to add a book to our store:

And the server's response — a 201 Created status with the newly created resource in the body:

Each HTTP method maps to one of the four basic data operations, known as CRUD. This mapping is the heart of REST.

Idempotency matters in design: If a network hiccup makes a client retry a request, an idempotent method (GET, PUT, DELETE) is safe to repeat — the result is the same. POST is not: retrying "create order" could charge a customer twice. This is why payment APIs add an idempotency key to make POST safe to retry.

The status code is the first thing a client reads. They come in five families, grouped by the first digit:

The 4xx vs 5xx rule: 4xx means "you made a mistake" (fix your request — wrong URL, bad data, missing auth). 5xx means "we made a mistake" (the server broke; retrying later may help). Returning the right family is critical — a server that returns 200 for an error makes every client misbehave.

What makes an API truly "RESTful" is a small set of constraints. The most important for system design is statelessness: the server stores nothing about the client between requests. Every request must carry its own context — including who the caller is (the auth token). The benefits compound:

• Stateless — any server can handle any request, so you scale by simply adding more servers.
• Uniform interface — resources as URLs, actions as methods, consistent everywhere.
• Cacheable — responses say whether they can be cached, letting CDNs and browsers serve them without hitting the server.
• Client–server separation — the frontend and backend evolve independently as long as the contract holds.

REST is the default, but it is not the only option. In system design you are expected to know the main alternatives and, more importantly, when each one is the better choice. You rarely implement these by hand — you justify picking one. Here are the four styles you should recognise:

Side by side, the trade-offs become clear:

SOAP, briefly: You may still meet SOAP — an older, strict, XML-based style used in some banking and enterprise systems. For new designs it is rarely chosen, but it is worth recognising the name.

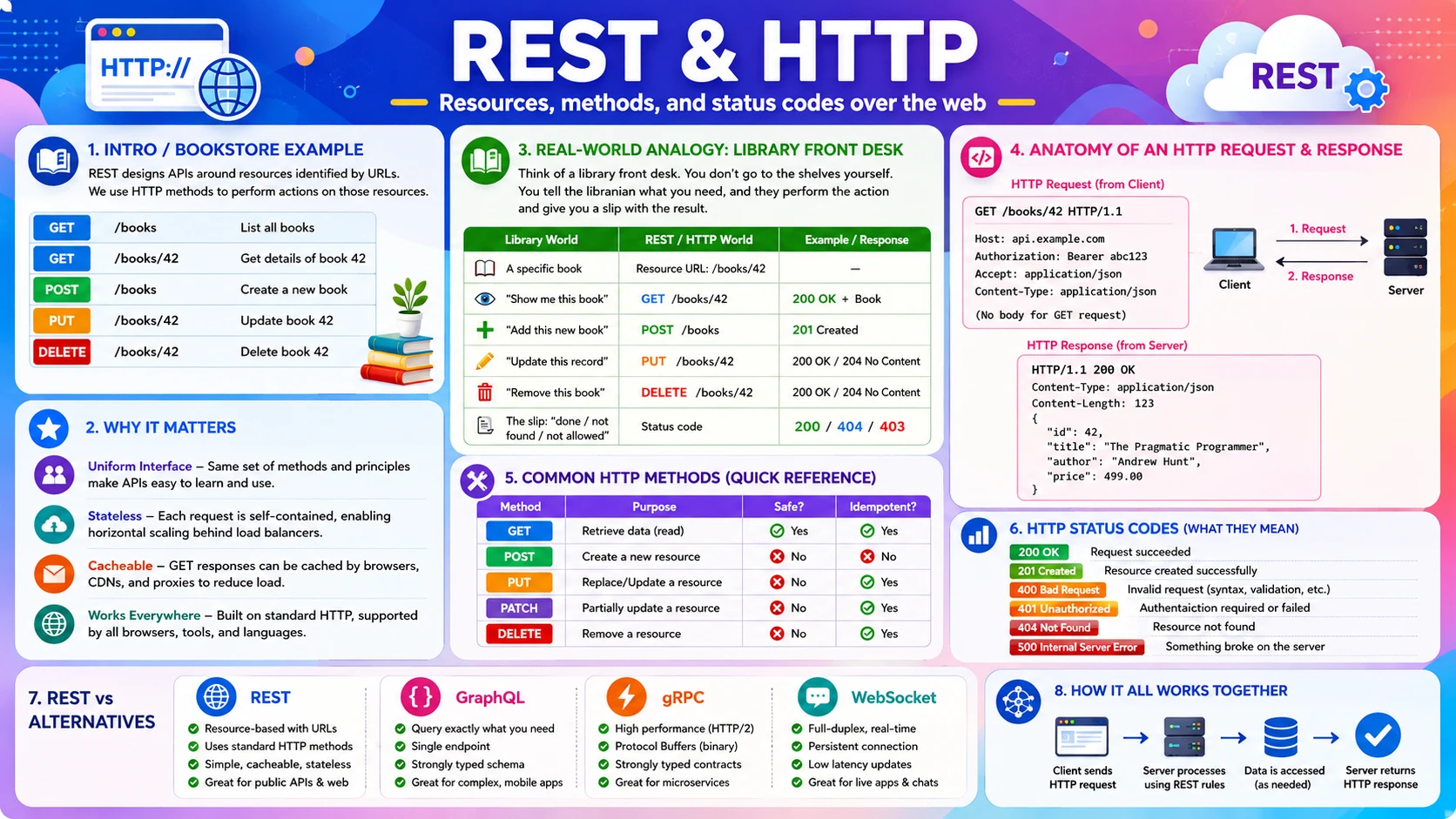

The diagram below shows the same resource — a book — acted on by the four main HTTP methods. One URL pattern, four verbs, four outcomes. This is the uniform interface that makes REST so easy to learn.

Reading the diagram: The client uses one resource path (/books and /books/42) with different methods to read, create, update, and delete. The server translates each into a database operation and replies with the matching status code. Same noun, different verbs — that is REST in one picture.

REST is the right default for the large majority of APIs. But knowing when to reach for GraphQL, gRPC, or WebSocket instead is exactly the kind of decision a system design expects you to justify. Use this decision guide:

A quick way to choose, phrased as questions you can ask in a design discussion:

• Is it a public/CRUD API for varied clients? → REST.
• Do clients need flexible, precise field selection? → GraphQL.
• Is it internal, high-throughput, latency-sensitive service-to-service traffic? → gRPC.
• Does the server need to push data in real time? → WebSocket (or Server-Sent Events for one-way push).

Rule of thumb: Start with REST. Switch only when a concrete requirement forces it — real-time push (WebSocket), internal speed (gRPC), or client-driven queries (GraphQL). "We use REST for the public API and gRPC between internal services" is a very common, very defensible architecture.

GitHub's public REST API is a textbook example of clean design. Every "thing" on GitHub — a repository, an issue, a user — is a resource with a predictable URL, and you act on it with standard HTTP methods. Here is a typical sequence when an app manages issues on a repo:

Creating an issue looks like this on the wire — note the noun in the URL, the verb as the method, and JSON in both directions:

Notice the discipline: nouns in the URL (/issues), verbs as methods (POST to create), correct status codes (201, 401, 429), and JSON bodies. That consistency is exactly why developers can pick up the GitHub API in minutes — and why REST became the web's default.

• REST is a style, HTTP is the protocol — nouns in the URL, verbs as methods, JSON in the body.
• Methods map to CRUD — GET reads, POST creates, PUT/PATCH update, DELETE removes.
• Status codes tell the story — 2xx success, 4xx your fault, 5xx server's fault.
• Statelessness enables scale — no server-side session means any server can serve any request.
• Know the alternatives — GraphQL for flexible queries, gRPC for internal speed, WebSocket for real-time push; start with REST and switch only when a requirement demands it.

✅ Challenge: Design a RESTful API for a to-do app

You are designing the API behind a simple to-do list app where users create, view, complete, and delete tasks. Think through the following:

• What resource URLs and HTTP methods would you expose for the four actions?
• Which status code should each return on success — and what should happen for a task that doesn't exist?
• Which of your endpoints are idempotent, and why does that matter?
• If the app later needs a live "shared list" that updates instantly across devices, which API style would you add — and why not just REST?

👁️ Show Answer

Endpoints (noun in URL, verb as method):

Action	Request	Success Code
List tasks	GET /tasks	200 OK
Create a task	POST /tasks	201 Created
View one task	GET /tasks/9	200 OK (404 if missing)
Mark complete	PATCH /tasks/9	200 OK
Delete a task	DELETE /tasks/9	204 No Content

Idempotency: GET, PUT, and DELETE are idempotent — calling them repeatedly leaves the system in the same state. That matters because a client can safely retry them after a network failure. POST is not idempotent: a retried "create task" could add the task twice, so you might add an idempotency key.

Live shared list: Plain REST can't push updates — the client would have to poll GET /tasks repeatedly, which is wasteful and laggy. Add a WebSocket connection so the server pushes changes to every device the instant a task changes. REST still handles the create/update/delete; WebSocket handles the real-time broadcast.

Cloud platforms provide managed gateways that host REST APIs and handle routing, throttling, and (in some cases) WebSocket and gRPC traffic, so you don't run that plumbing yourself:

Simplest AWS picture: Expose a REST API on API Gateway → it routes each method to a Lambda function or backend service → the function returns JSON with the right status code. For real-time features, switch the same gateway to a WebSocket API.

---

An open API is an open door. Once you expose endpoints to the world, the server needs to answer two questions on every single request: who is calling? and are they allowed to do this? The first is authentication, the second is authorization, and together they are what keep your data, your users, and your costs safe. In this section you will learn the main ways APIs prove identity — API keys, tokens, JWT, and OAuth — how a stateless token flow actually works, and which method to choose for a given system.

Imagine a photo-printing app asks to access your Google Photos so it can print your pictures. You click "Allow" — and it works. But notice what you never did: you never gave the app your Google password. Instead, Google handed the app a limited token that lets it read your photos and nothing else, which you can revoke at any time. That is API authentication done right, and the mechanism behind it is called OAuth.

Two related ideas sit at the heart of this topic, and mixing them up is the most common beginner error:

• Authentication (AuthN) — "Who are you?" The server verifies your identity, usually by checking a credential like a password, an API key, or a token.
• Authorization (AuthZ) — "What are you allowed to do?" Once identity is known, the server decides which actions and data you may access.

Authentication always comes first — you can't decide what someone is allowed to do until you know who they are. The photo app was authenticated (Google knew which app it was) and authorized for a narrow scope (read your photos, but not delete them or read your email).

Every public endpoint is a target. Industry reports estimate that APIs are now the most common attack surface for web applications, with the majority of organisations reporting an API-related security incident. A single unprotected endpoint can leak millions of user records — and a leaked API key can run up enormous bills on a paid service before anyone notices.

• Data protection — without authentication, anyone who guesses your URL can read or modify your users' data.
• Accountability — identity lets you log who did what, essential for auditing and abuse investigation.
• Rate limiting & billing — you can only enforce "100 requests per minute" or "charge per call" if you know which client is calling.
• Least privilege — scopes and roles let you give each caller exactly the access it needs and no more, limiting the blast radius of a leak.

⚠️ Authentication is never optional in design. In any system design discussion, as soon as you draw an API, you should be ready to say how it authenticates callers. "All endpoints require a bearer token over HTTPS, validated at the API Gateway" is the kind of sentence that shows you think about security from the start.

Think of checking into a hotel. At the front desk you show your ID — that is authentication, proving who you are. In return you get a key card — a token. The key card opens your room and the gym, but not other guests' rooms or the staff office — that is authorization, defined by what the card is permitted to do. The card expires at checkout, and the front desk can deactivate it instantly if it's lost.

The key insight: you show your ID once, then carry a key card you present everywhere else. APIs work the same way — you authenticate once to get a token, then attach that token to every later request instead of sending your password again and again.

Modern APIs almost always use token-based authentication. Let us break down how it works: the difference between AuthN and AuthZ, the token flow itself, what's inside a JWT, and why HTTPS is non-negotiable.

These two steps happen on every protected request, in order. Authentication answers "who are you?" by validating the token. Authorization then answers "are you allowed to do this?" by checking the token's scopes or the user's role against the action requested. A valid token with the wrong scope returns 403 Forbidden; a missing or invalid token returns 401 Unauthorized.

The flow has two phases — log in once, then reuse the token. This keeps the API stateless: the server doesn't remember the client between calls; the token itself carries the proof.

A JWT (JSON Web Token) is the most common access token format. It is three Base64 parts joined by dots — header.payload.signature. The header says how it's signed, the payload carries claims (who the user is, scopes, expiry), and the signature proves it hasn't been tampered with. Because the signature can be verified with a secret key alone, the server needs no database lookup to trust it — that is what makes JWTs stateless and fast.

⚠️ A JWT payload is encoded, not encrypted. Anyone holding the token can read its contents — only the signature is protected. Never put passwords or secrets in a JWT payload. The signature stops tampering; it does not hide the data.

Every authentication method here sends a secret over the network — an API key, a password, or a bearer token. Over plain HTTP, anyone on the path can read it and impersonate the caller. HTTPS encrypts the entire request, including headers, so the token can't be stolen in transit. Authentication without HTTPS is no security at all.

There are a handful of authentication methods you'll meet in practice. Each fits a different situation — from simple server-to-server calls to letting a third-party app act on a user's behalf.

🔗 API key vs token — the key difference: an API key usually identifies an application and is long-lived, while a token (JWT) identifies a user session, carries scopes, and expires. OAuth is not a fourth competitor — it's a framework that issues tokens; the token it hands out is typically a bearer token/JWT.

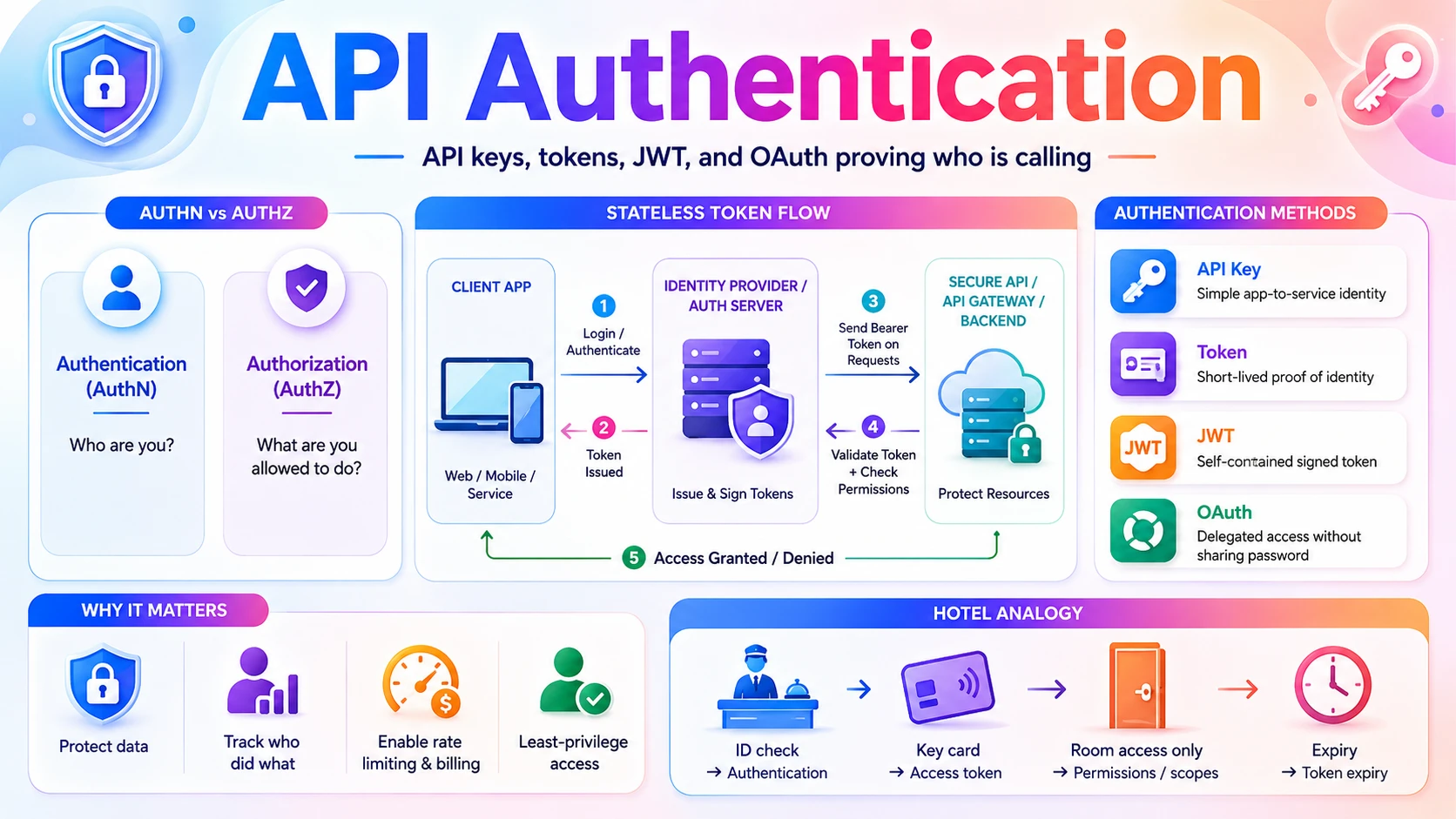

The diagram below shows the token-based flow end to end: the client logs in once to get a token, then presents that token on every later call to the API, which validates it before responding. The login step and the data step are cleanly separated.

Reading the diagram: The client authenticates once at the auth server ① and receives a token ②. From then on it attaches that token to every API request ③. The API server validates the token's signature and scopes before touching the database ④⑤ and returns the result ⑥. Notice the API server never sees the password — only the token.

Picking the right method is a design decision you should be able to justify. The choice comes down to who is calling and on whose behalf. Use this guide:

Rule of thumb: For a typical app — "users log in, mobile/web client calls our API" — use JWT bearer tokens over HTTPS. The moment a third party needs access to a user's data without their password, reach for OAuth 2.0. For pure machine-to-machine, an API key (or mTLS for sensitive internal traffic) is usually enough.

Back to the photo-printing app that wants your Google Photos. Here is the OAuth 2.0 flow that lets it read your photos without ever seeing your Google password:

Contrast that with a simple paid API like a weather or payment service, where no end user is involved — you just authenticate the application itself with an API key:

Why OAuth is brilliant: three separate problems are solved at once — the app never learns your password, it gets only the narrow scope you approved, and you can revoke it independently. That separation is exactly why "Log in with Google/Apple/GitHub" is everywhere.

Token-based authentication (JWT) is the modern default, so it's worth weighing its strengths against the stateful session approach it largely replaced:

• AuthN ≠ AuthZ — authentication proves who you are; authorization decides what you may do.
• Token-based auth is the default — log in once, then send a bearer token (often a JWT) on every request.
• A JWT is signed, not secret — the signature blocks tampering, but the payload is readable; keep secrets out of it.
• OAuth grants delegated access — let a third-party app act for a user with a scoped, revocable token and no password sharing.
• HTTPS, expiry, and scopes are non-negotiable — encrypt the channel, expire tokens, and grant least privilege.

🔐 Challenge: Design authentication for a fitness platform

You run a fitness platform with a mobile app, a public API for third-party developers, and internal microservices. Think through the following:

• How should your own mobile app users authenticate to your API?
• A third-party app wants to read a user's workout history. How do you let it — without the user giving it their password?
• Your internal "billing service" calls your "user service." How should those internal calls authenticate?
• How do you make sure a stolen token can't be used forever?

👁️ Show Answer

Mobile app users → JWT bearer tokens. The user logs in once; your auth server issues a short-lived access token (JWT) and a refresh token. The app sends Authorization: Bearer <token> on every call, over HTTPS. Any server can validate the token without a session store.

Third-party access → OAuth 2.0. The third-party app sends the user to your consent screen requesting a scope like workouts.read. The user approves, and the app receives a scoped, revocable token — never the password. The user can revoke it anytime.

Internal service-to-service → mTLS or short-lived service tokens. The billing and user services authenticate each other with mutual TLS certificates (or signed service tokens) inside the private network — no human user is involved.

Limiting stolen tokens: make access tokens short-lived (e.g. 15 minutes) and use refresh tokens to renew. For instant kill-switch, keep a small revocation denylist checked at the gateway. Always require HTTPS and store tokens in secure storage, never in plain local storage.

You rarely build authentication from scratch. Cloud platforms offer managed identity services that issue and validate tokens, run OAuth flows, and plug straight into your API gateway:

Simplest AWS picture: Users authenticate through Cognito, which issues a JWT → the client sends it to API Gateway, where an authorizer validates the token and scopes before the request ever reaches your Lambda or service. API keys and signing secrets live in Secrets Manager, never in code.

---
